Home > Stainless Steel > Stainless Steel Corrugated Tubing

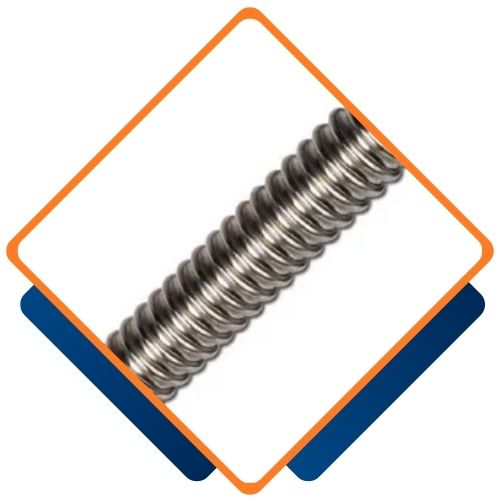

David Pipes and Tubes is a well-respected manufacturer and supplier of stainless steel corrugated tubing, proudly based in Canberra, Australia. The company focuses on creating flexible and durable tubing solutions that excel in applications demanding exceptional strength, vibration resistance, and flexibility. Crafted with precision and stringent quality control, these tubes boast impressive corrosion resistance and are built to perform reliably under a range of temperature and pressure conditions. David Pipes and Tubes is dedicated to providing top-notch stainless steel corrugated tubing that adheres to international standards, serving industries like gas distribution, HVAC, petrochemical, and fluid transfer systems.
The composition of stainless steel corrugated tubing primarily includes chromium (17–20%), nickel (8–13%), and molybdenum (2–3%), depending on the specific grade, which is usually 304, 304L, or 316L. These alloying elements contribute to its remarkable corrosion resistance, flexibility, and mechanical strength. The tubing showcases a tensile strength of 515–620 MPa, yield strength of 205–240 MPa, elongation of 35–40%, and hardness below 90 HRB. Its corrugated design not only enhances flexibility and vibration absorption but also ensures high resistance to pressure and temperature, promising a long service life and dependable performance.
| Size Range | 6.35 mm To 50.8 mm OD |
| Length | As per Customer requirement, Maximum upto 22 Meter Long. |
| Thickness | 0.50 mm TO 6.0 mm |
| Dimenisons | ASTM,AISI,ASME,JIS,DIN,EN,GB,BS,SUS |
| Standard | ASTM A / ASME SA213 |
| Material | SS 304, SS 304L,SS 316,SS 316L |
| Form | Round, Square, Rectangular, Coil, U Tube, Pan Cake. |
| Shapes | Straight tube, Coil tubing |
| Type | As Welded, EFW, ERW, Seamless, Semi Seamless, Bead Removed |
| Finish | SS cottugated tubes and corrugated pipes can be supplied in mechanical polished with various grits like at 80, 120, 240, 320, 400, 600 grit and mirror polished. |
| Packing | Sleeved, Ends Capped, Wooden Boxed |
| STAINLESS STEEL CORRUGATED TUBE GRADES | UNS | C | Mn | P | S | Si | Cr | Ni | Mo | Ti | Nb | N |
| TP304 | S30400 | 0.08 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-11.0 | ||||
| TP304L | S30403 | 0.035 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-13.0 | ||||
| TP316 | S3160 | 0.08 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 11.0-14.0 | 2.0-3.0 | |||
| TP316L | S31603 | 0.035 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
| Material | Heat | Temperure | Tensile Strength | Yield Strength | Elongation %, Min |
| Treatment | Min. | Ksi (MPa), Min. | Ksi (MPa), Min. | ||
| º F(º C) | |||||
| TP304 | Solution | 1900 (1040) | 75(515) | 30(205) | 35 |
| TP304L | Solution | 1900 (1040) | 70(485) | 25(170) | 35 |
| TP316 | Solution | 1900(1040) | 75(515) | 30(205) | 35 |
| TP316L | Solution | 1900(1040) | 70(485) | 25(170) | 35 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| GRADE | UNS NO | DIN/WERKSTOFF |
|---|---|---|
| 304 | S30400 | 1.4301 |
| 304H | S30409 | – |
| 304L | S30403 | 1.4306 |
| 310S | S31008 | 1.4845 |
| 316S | S31600 | 1.4436 |
| 316H | S31609 | – |
| 316 TI | S31635 | 1.4571 |
| 316L (2.5 MIN MOLY) | S31603 | 1.4435 |
| 316L | S31603 | 1.4404 |
| 317L | S31703 | 1.4438 |
| 321 | S32100 | 1.4541 |
| 321H | S32109 | – |
| 347 | S34700 | 1.4550 |
Choosing Stainless Steel Corrugated Tubing from David Pipes and Tubes ensures outstanding corrosion resistance, high strength, and durability. Our Tube is designed for diverse industrial applications, delivering reliability and performance in challenging environments while maintaining competitive pricing.
David Pipes and Tubes, one of the largest suppliers of Stainless Steel Corrugated Tubing in Canberra, Australia, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.
| SIZE OD | NOMINAL WALL THICKNESS | OUTSIDE DIAMETER TOLERANCE | LENGTH TOLERANCE | WALL THICKNESS TOLERANCE | ||||
|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (%) |
| ½ | 12.7 | 0.065 | 1.65 | +/-0.005 | +/-0.13 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| ¾ | 19.1 | 0.065 | 1.65 | +/-0.005 | +/-0.13 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 1 | 25.4 | 0.065 | 1.65 | +/-0.005 | +/-0.13 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 1½ | 38.1 | 0.065 | 1.65 | +/-0.008 | +/-0.20 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 2 | 50.8 | 0.065 | 1.65 | +/-0.008 | +/-0.20 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 2½ | 63.5 | 0.065 | 1.65 | +/-0.010 | +/-0.25 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 3 | 76.2 | 0.065 | 1.65 | +/-0.010 | +/-0.25 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 4 | 101.6 | 0.083 | 2.11 | +/-0.015 | +/-0.38 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 6 | 152.4 | 0.109 | 2.77 | +/-0.030 | +/-0.76 | +1, -0 | +25.4, -0 | +/-10.0% |
Yes, we offer custom sizes for Stainless Steel Corrugated Tubing to meet your specific requirements. Our team at David Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@davidpipes.com.
Stainless steel corrugated tubing finds its place in various applications where flexibility and corrosion resistance are crucial. It’s perfect for gas and water connections, HVAC systems, heat exchangers, and solar water heating setups. In industrial settings, it stands out as an excellent option for transferring liquids, steam, or gases under dynamic conditions. Its thoughtful design reduces the risk of leaks and allows for easy installation in tight spaces. With its resilience, lightweight nature, and maintenance-free performance, this tubing is a fantastic choice for both commercial and residential uses.
