Home > Stainless Steel > Stainless Steel Hydraulic Pipes

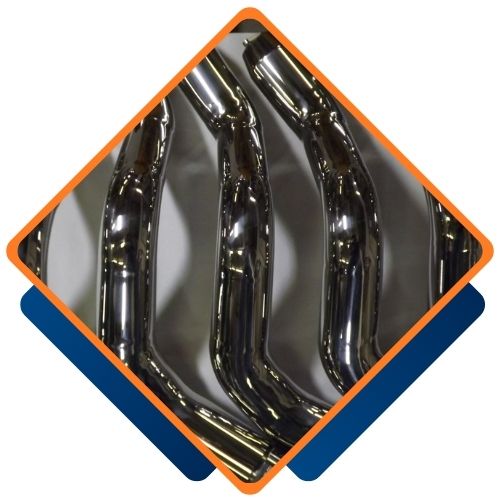

David Pipes and Tubes is a reputable manufacturer and supplier located in Canberra, Australia, with a focus on high-quality **Stainless Steel Hydraulic Pipes**. Renowned for their precision engineering, durability, and outstanding performance, the company offers piping solutions that can handle high pressures and tough industrial environments. Crafted with cutting-edge technology and rigorous quality control, these hydraulic pipes provide excellent resistance to corrosion, impressive mechanical strength, and a long lifespan. David Pipes and Tubes caters to a variety of sectors, including construction, automotive, aerospace, and industrial machinery, delivering stainless steel hydraulic pipes that ensure reliable performance, safety, and efficiency in critical hydraulic systems and high-pressure applications.
**Stainless Steel Hydraulic Pipes** are mainly made up of iron, chromium (10–20%), nickel, along with trace amounts of carbon, manganese, and molybdenum. This unique blend gives them remarkable resistance to corrosion and oxidation while maintaining a high tensile strength ranging from 515 to 1035 MPa, along with good yield strength and ductility. These pipes are engineered to endure high-pressure fluid flow, temperature fluctuations, and mechanical stress. Their smooth internal surface promotes efficient flow and minimizes turbulence, while their sturdy construction ensures structural integrity, making them perfect for demanding hydraulic systems across various industrial applications.
| Size Range | OD 6 mm 60.3 mm |
| Standrads | EN 10216-5 TC1/TC2, ASTM A 269, PED 97/23/EC, AD 2000 , NACE MR0175 |
| Dimenisons | ASTM,AISI,ASME,JIS,DIN,EN,GB,BS,SUS |
| Material | SS 304, SS 304L,SS 316,SS 316L, SS 321, SS321H, SS347, Ss347H |
| Surface | bright annealed condition, and pickled + polished condition on customer’s request. |
| advantages | smooth surface, good hardness (below 80 HRB), no defects, clean inside surface, and high precision tolerances |
| Nominal Pipe Size (inches) | Outside Diameter | Hydraulic Pipe Schedule Chart | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 5S | 10S | 40S | 80S | |||||||
| (mm) | (inches) | Wall Thickness and Weight | ||||||||
| mm (in) | kg/m | mm (in) | kg/m | mm (in) | kg/m | mm (in) | kg/m | |||
| 1/8 | 10.3 | 0.405 | – | – | 1.25 (0.049) | 0.28 | 1.73 (0.068) | 0.37 | 2.42 (0.095) | 0.47 |
| 1/4 | 13.7 | 0.540 | – | – | 1.66 (0.065) | 0.49 | 2.24 (0.088) | 0.63 | 3.03 (0.119) | 0.80 |
| 3/8 | 17.2 | 0.675 | – | – | 1.66 (0.065) | 0.63 | 2.32 (0.091) | 0.85 | 3.20 (0.126) | 1.10 |
| 1/2 | 21.3 | 0.840 | 1.65 (0.065) | 0.81 | 2.11 (0.083) | 1.00 | 2.77 (0.109) | 1.27 | 3.74 (0.147) | 1.62 |
| 3/4 | 26.7 | 1.050 | 1.65 (0.065) | 1.02 | 2.11 (0.083) | 1.28 | 2.87 (0.113) | 1.68 | 3.92 (0.154) | 2.20 |
| 1 | 33.4 | 1.315 | 1.65 (0.065) | 1.30 | 2.77 (0.109) | 2.09 | 3.38 (0.133) | 2.50 | 4.55 (0.179) | 3.24 |
| 1 1/4 | 42.2 | 1.660 | 1.65 (0.065) | 1.66 | 2.77 (0.109) | 2.69 | 3.56 (0.140) | 3.39 | 4.86 (0.191) | 4.47 |
| 1 1/2 | 48.3 | 1.900 | 1.65 (0.065) | 1.91 | 2.77 (0.109) | 3.11 | 3.69 (0.145) | 4.06 | 5.08 (0.200) | 5.41 |
| 2 | 60.3 | 2.375 | 1.65 (0.065) | 2.40 | 2.77 (0.109) | 3.93 | 3.92 (0.154) | 5.45 | 5.54 (0.218) | 7.49 |
| 2 1/2 | 73.0 | 2.875 | 2.11 (0.083) | 3.69 | 3.05 (0.120) | 5.26 | 5.16 (0.203) | 8.64 | 7.01 (0.276) | 11.4 |
| 3 | 88.9 | 3.500 | 2.11 (0.083) | 4.52 | 3.05 (0.120) | 6.46 | 5.49 (0.216) | 11.3 | 7.62 (0.300) | 15.3 |
| 3 1/2 | 101.6 | 4.000 | 2.11 (0.083) | 5.18 | 3.05 (0.120) | 7.41 | 5.74 (0.226) | 13.6 | 8.08 (0.318) | 18.6 |
| 4 | 114.3 | 4.500 | 2.11 (0.083) | 5.84 | 3.05 (0.120) | 8.37 | 6.02 (0.237) | 16.1 | 8.56 (0.337) | 22.3 |
| 5 | 141.3 | 5.563 | 2.77 (0.109) | 9.46 | 3.41 (0.134) | 11.6 | 6.56 (0.258) | 21.8 | 9.53 (0.375) | 31.0 |
| 6 | 168.3 | 6.625 | 2.77 (0.109) | 11.3 | 3.41 (0.134) | 13.9 | 7.12 (0.280) | 28.3 | 10.98 (0.432) | 42.6 |
| 8 | 219.1 | 8.625 | 2.77 (0.109) | 14.8 | 3.76 (0.148) | 20.0 | 8.18 (0.322) | 42.5 | 12.70 (0.500) | 64.6 |
| 10 | 273.1 | 10.750 | 3.41 (0.134) | 22.7 | 4.20 (0.165) | 27.8 | 9.28 (0.365) | 60.4 | 12.70 (0.500) | 81.5 |
| 12 | 323.9 | 12.750 | 3.97 (0.156) | 31.3 | 4.58 (0.180) | 36.1 | 9.53 (0.375) | 73.9 | 12.70 (0.500) | 97.4 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing stainless steel Hydraulic pipes from David Pipes and Tubes ensures high-quality materials with excellent corrosion resistance and durability. Our products are tailored to meet diverse industry standards, offering reliability and versatility for various applications. Our commitment to customer service and timely delivery makes us a trusted supplier.
David Pipes and Tubes, one of the largest suppliers of Stainless Steel Hydraulic Pipes in Canberra, Australia, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.
| Material | Heat | Temperure | Tensile Strength | Yield Strength | Elongation %, Min |
| Treatment | Min. | Ksi (MPa), Min. | Ksi (MPa), Min. | ||
| º F(º C) | |||||
| TP304 | Solution | 1900 (1040) | 75(515) | 30(205) | 35 |
| Material | Heat | Temperure | Tensile Strength | Yield Strength | Elongation %, Min |
| Treatment | Min. | Ksi (MPa), Min. | Ksi (MPa), Min. | ||
| º F(º C) | |||||
| TP304 | Solution | 1900 (1040) | 75(515) | 30(205) | 35 |
| GRADE | UNS NO | DIN/WERKSTOFF |
|---|---|---|
| 304 | S30400 | 1.4301 |
| 304H | S30409 | – |
| 304L | S30403 | 1.4306 |
| 310S | S31008 | 1.4845 |
| 316S | S31600 | 1.4436 |
| 316H | S31609 | – |
| 316 TI | S31635 | 1.4571 |
| 316L (2.5 MIN MOLY) | S31603 | 1.4435 |
| 316L | S31603 | 1.4404 |
| 317L | S31703 | 1.4438 |
| 321 | S32100 | 1.4541 |
| 321H | S32109 | – |
| 347 | S34700 | 1.4550 |
Yes, we offer custom sizes for Stainless Steel Hydraulic Pipes to meet your specific requirements. Our team at David Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@davidpipes.com.
**Stainless Steel Hydraulic Pipes** find extensive use in industries that demand high-pressure fluid transmission and corrosion resistance. They are commonly found in the hydraulic systems of construction and industrial machinery, automotive systems, and aerospace equipment. Additionally, these pipes are utilized in the oil and gas, chemical processing, and power generation sectors for dependable fluid transport under extreme conditions. Their blend of strength, durability, and corrosion resistance makes stainless steel hydraulic pipes ideal for critical applications where safety and efficiency are paramount.
